performance index project Spetime S5 PRO
Body material, size and test Car body color black
Body material Aluminum + iron
Package size (CM) 120 x 39 x 50
Folding size (CM) 117 x 62 x 55
Expanded size (CM) 117 x 62 x 94
Chassis height (mm) one hundred and forty
Applicable height (CM) two hundred
Net weight of complete vehicle (kg) twenty point five
Gross weight of the whole vehicle (kg) twenty-five
Limit load of vehicle body (kg) one hundred and fifty
Vehicle parameters Speed gear (km) First gear 20 second gear 30 third gear 40 yard full power load
Maximum speed (km / h) 40KM/H
Mileage (km) About 30-35km / h
Applicable terrain Hardened pavement, flat soil pavement, slope below 30 degrees, unit price not higher than 10cm, ditch not more than 8cm
Service temperature - 10 ° to 40 °
Waterproof grade IP64
controller Voltage (V) 48V
Overcurrent protection value (a) 18A
Undervoltage protection value (V) 39V
Motor (wheel) parameters Rated power (W) 600W
Rated voltage (V) 48V
Rated current (a) 10±0.5A/5.5Nm
No load current (a) ≤1.1A
No load speed (1min) 780 ± 20 rpm
front tyre 12 inch pneumatic tire (widened)
Auxiliary rear wheel size 12 inch pneumatic tire (widened)
Battery pack parameters Battery / cell brand Huiyi
Battery capacity (ah) 11AH
Rated voltage (V) forty-eight
Charging input voltage (V) 54.6V
Battery BMS have
Rechargeable times of battery ≥600
Charger Parameters Rated power (W) 109.2W
Rated input voltage (V) 100V-240V
Rated current (a) 1.8A-2.2A
Charging time (H) 6-8H
Rated output voltage (V) 54.4V-55.2V
Headlamp Working voltage (V) 48V
Working current (a) 25 MA (0.025a)
Rear brake lamp Working voltage (V) 48V
Working current (a) 12 Ma

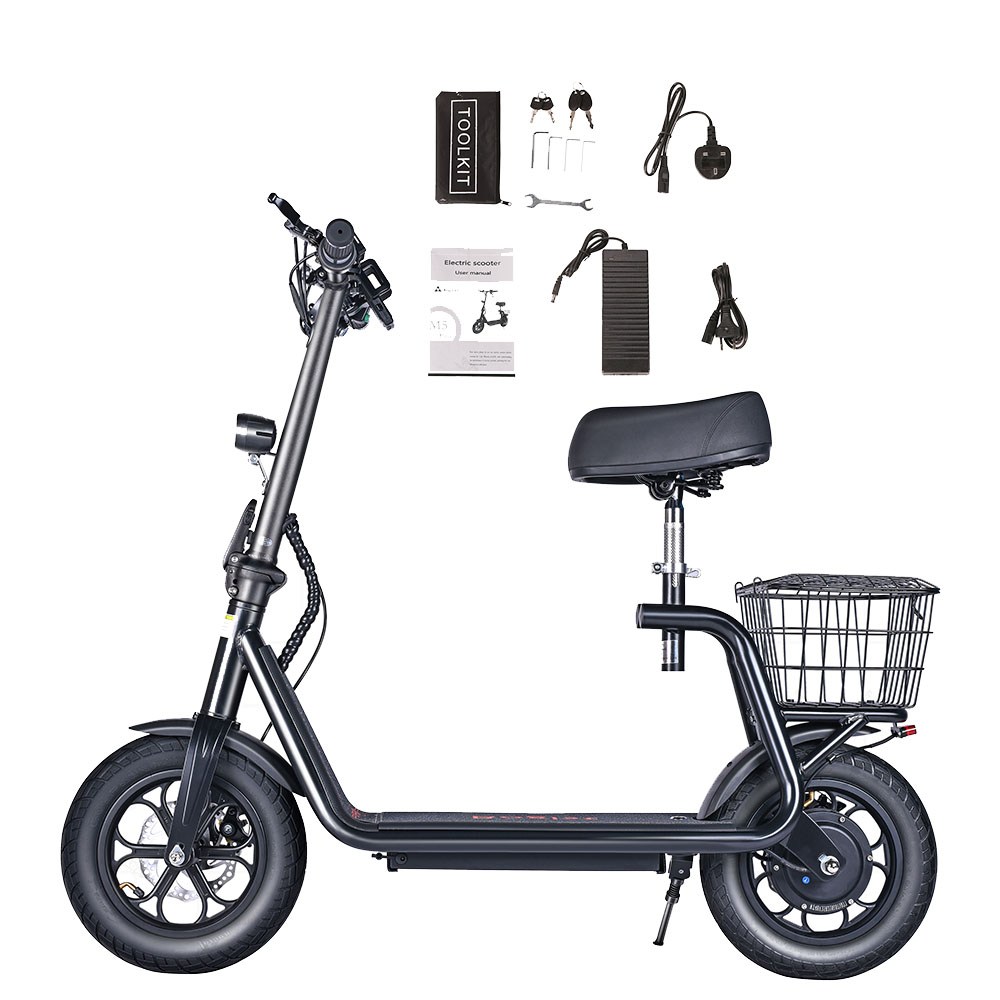

Packing list Scooter * 1, power adapter * 1, manual * 1, Tool Kit * 1
characteristic Dual brake system, long endurance, high-performance motor, fast folding, LED headlights, lithium battery pack, LCD.
selling point "1. With mobile phone bracket
2. Easy to fold and carry
3. Adjustable seats and handles
3. Storage basket
4,11ah capacity battery
5,3 speed operation modes
6. Luminous LED headlights
5600w motor, maximum speed up to 45km / h
6. Front and rear disc broken
7150 kg load capacity“
describe 1. [11W / 40km] adult electric scooter, with a maximum climbing speed of 12-40km and a maximum climbing range of 45w-40h.
2. [dual braking system]: front and rear disc brakes and EABS regenerative anti lock braking system, with efficient and sensitive braking distance of only 4m, provide additional protection. The brake can be controlled from left to right. The rear red tail light is safer when braking.

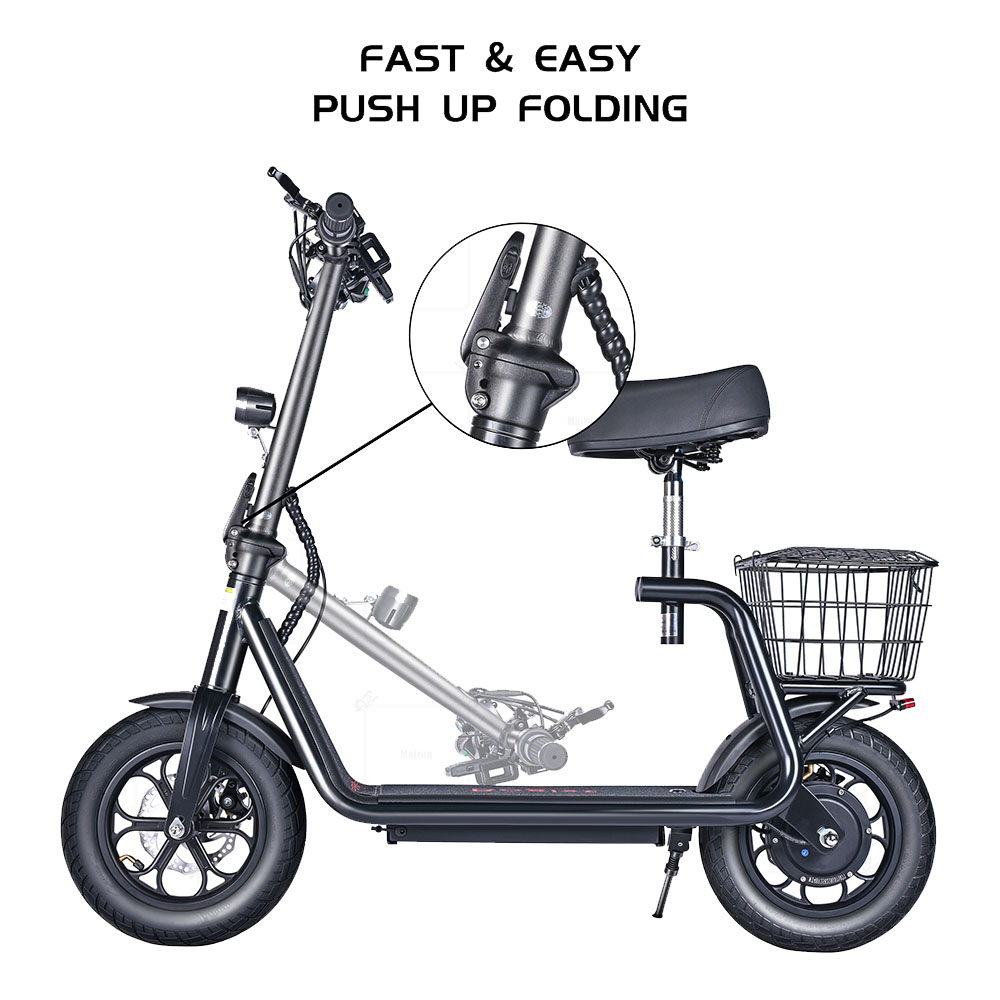

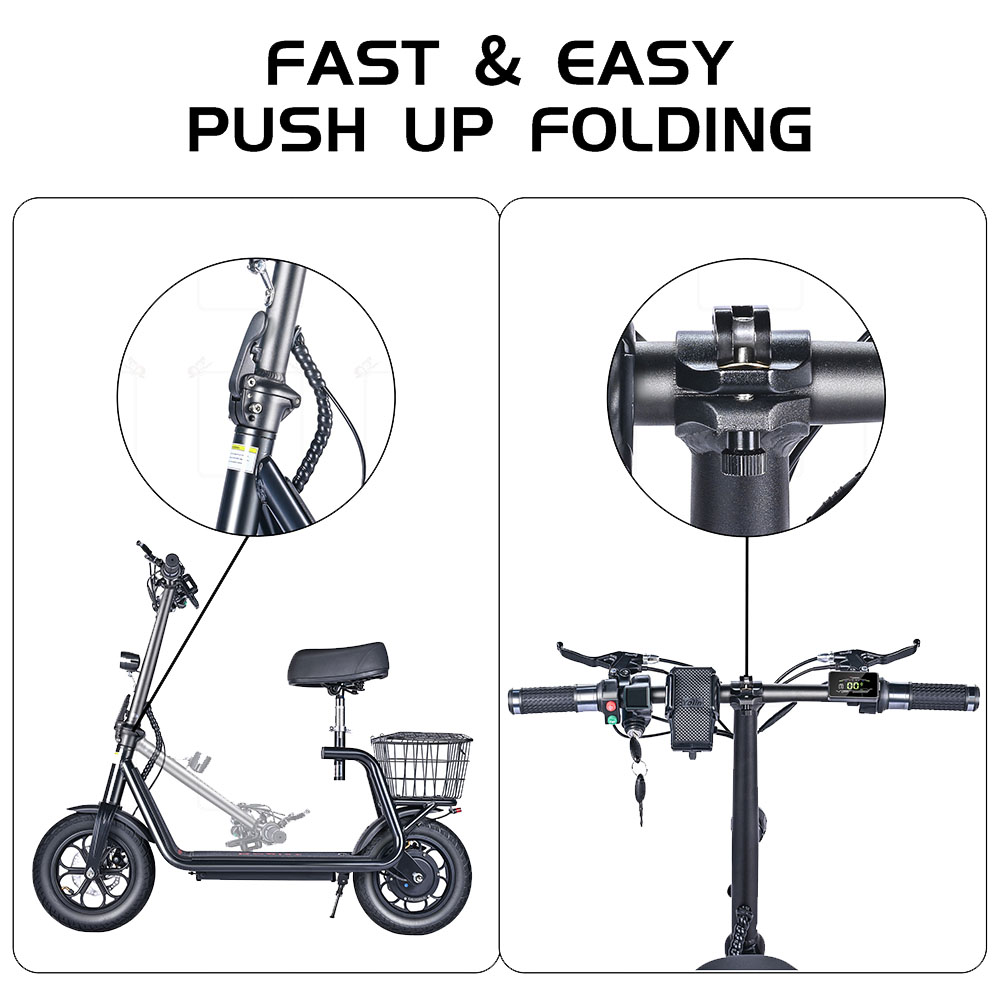

3. [portable folding]: it is made of light aluminum alloy and weighs only 25 kg. The handlebars can be folded for easy carrying and put into the trunk of the car, or take a train or bus to help you travel through the countryside or urban landscape.
4. [high safety]: bright headlights + tail lights ensure that you can ride safely in low light conditions, even at night. Front electronic brake + rear disc brake, fast and effective braking. Dual hydraulic shock absorbers and 12 inch pneumatic tires provide excellent cushioning and skid resistance. Key unlocking, safer.
5. [firm and stable]: the double aluminum frame can improve the stability and will not shake when driving on uneven ground with 12 inch puncture resistant tires. The height adjustable suspension column base can support up to 150 kg.
6. [soft seat and storage basket]: leather seat and rear basket are of high quality and more comfortable to commute during long-distance travel. The seat height is adjustable and removable. There is a storage basket behind the seat, which can hold your belongings and bring convenience to your travel.
features 1. Equipped with seats, so that car owners can choose any direction, travel quickly and develop at a high speed.
2. The maximum load is 150 kg. In terms of structure, the front side changes slightly, and the connection between the platform and the front frame is more accurate.
3. It is also equipped with 12 inch tires with greater grip for better off-road performance.
4. The electric scooter accelerates fast and maintains excellent speed. Dual suspension and adjustable rear shock absorber make the S5 Pro available for off-road riding.
5. The front and rear wheels adopt double disc brake system, which makes us more confident when driving. The front and rear disc brakes provide you with all the braking force you need. One click can determine which of the three existing speed modes is more suitable for future journeys
6. The maximum speed is 45km / h and the climbing slope is 12 °. The 600W brushless motor provides the necessary power for the scooter and can move any type of user at high speed, up to 150kg.
7. The 11ah battery has a maximum capacity of 40km and takes about 6-8 hours to be fully charged.
8. The stable and powerful 600W motor is suitable for anyone who wants to go. The motor also supplies power to its headlights and taillights.
9. The body of this bicycle adopts waterproof design, which makes it very suitable for being a useful electric bicycle. It can go to emergency places even in rainy days.
10. This electric bicycle is also equipped with front and rear disc brakes, which is more sensitive than you think, and the grip of pneumatic tires is also very good.
11. The saddle of this car extends to the backrest to give the user a comfortable sitting position, and there is a four-sided frosted cushion on the inner side of the cushion, which increases the comfort and softer touch when not sitting, which is easy to make the rider tired.
introduce This spetime S5 Pro electric scooter / bicycle is your favorite electric scooter and electric bicycle, because you can remove the seat, excellent explosion-proof vacuum tire, wider and thicker, and are not afraid of being pierced by nails. It uses 600W motor, with strong stability, strong power, waterproof design and fearless in the rain.
In terms of braking performance, the front and rear wheel disc braking system makes braking more sensitive and safer. Spetime S5 Pro is also equipped with dual damping system, which makes it more comfortable to ride and face all kinds of roads easily. A basket is also installed at the back, with strong weighing capacity.
The extended rear saddle with independent backrest can rest on it, making it more comfortable to sit up and not easy to deform, which makes it comfortable to ride on humps and bumps.
Obtaining such equipment, equipped with 600W motor, 48amp lithium battery, maximum speed of 40-45kph, range of 35-40km after full charge, three speed modes and 12 degree climbing ability, is an excellent solution for urban residents, who often encounter traffic jams.
