Basic parameters Product name (Chinese) 26 inch Hummer mountain
model EK-K1
Speed mode Electric mode plus boost mode
Speed gear five
Maximum speed (km / h) thirty
Electric range (km) 28-32km depends on people's weight, road conditions, weather and maximum speed
Maximum range assisted (km) 35-40km depends on people's weight, road conditions, weather, maximum speed, speed change gear, stepping force and frequency
Applicable terrain Mountain Jiaping Road
Service temperature ﹣10℃~45℃
Maximum climbing gradient Not more than 30 degrees

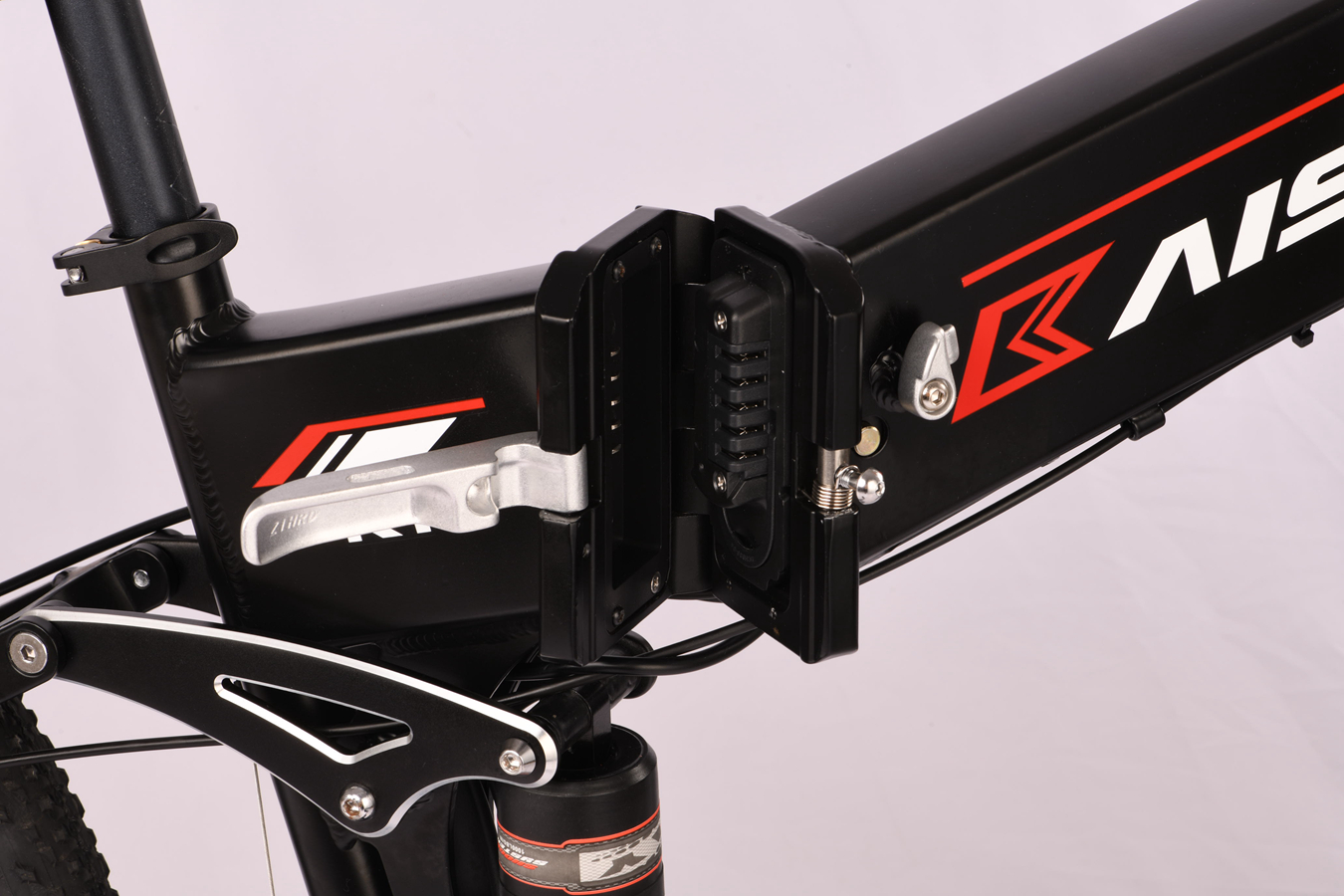

Body material & size Frame material and process Aluminum alloy, frame, four link damping technology
Car body color Body black, white
Packing box size (length, width and height cm) 149*24*76
Vehicle size (length, width and height cm) 180*66*102
Folding size (length, width and height cm) 102*66*95
Net weight (kg) twenty-nine point eight
Gross weight (kg) thirty
Maximum bearing capacity of vehicle body (kg) 120kg
Pedal distance from the ground (CM) fourteen
Applicable height (CM) 160-180

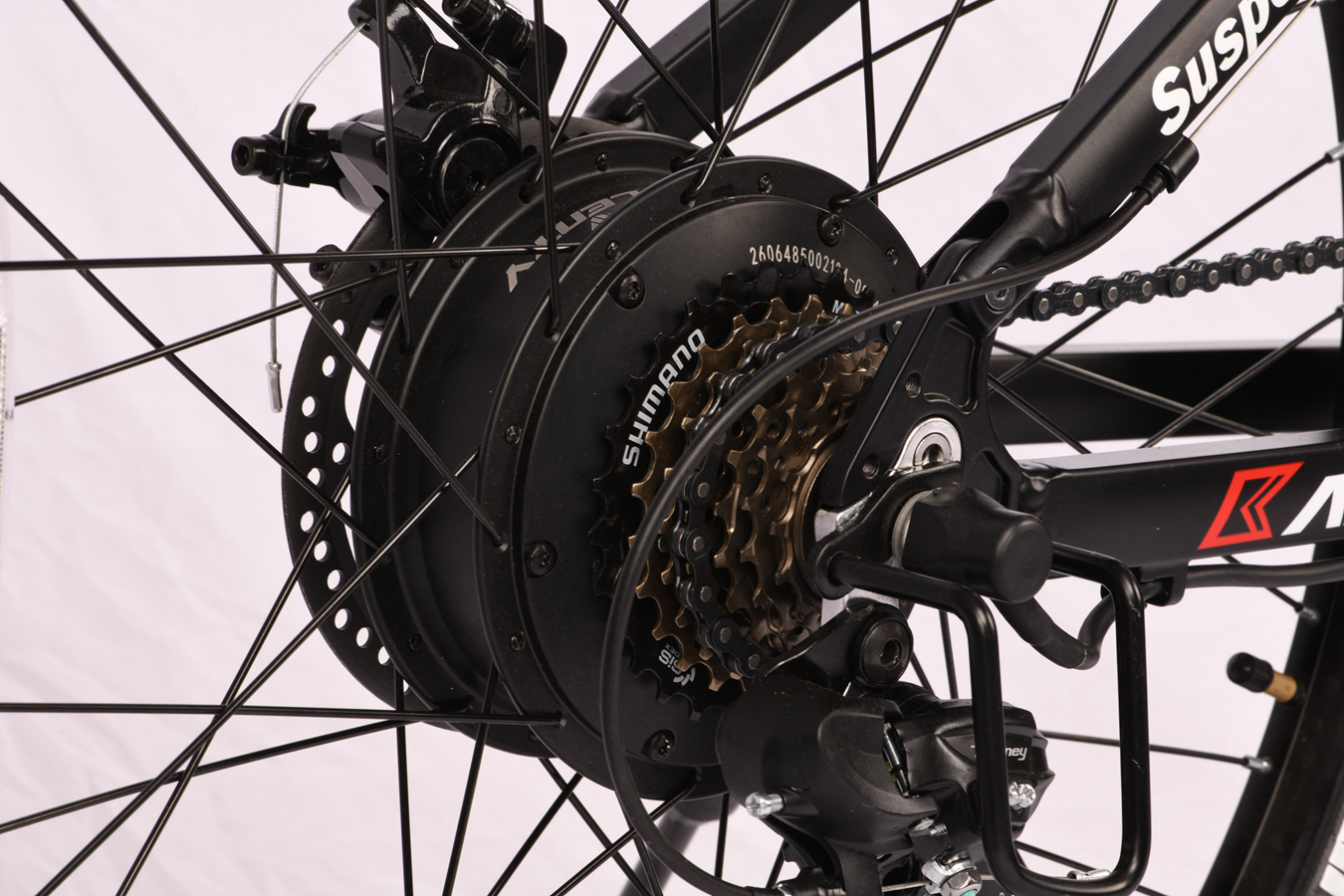

Motor (wheel) parameters Motor brand Trank
Rated voltage (V) 48V
Rated power (W) 500W
Rated current (a) 13.2A
No load current (a) <= 1.5A
No load speed (1min) 300+-15
Number of motors (set) one
Motor wheel diameter (inch) twenty-six
Instantaneous maximum power 700W
Load speed 250+-15
Maximum output torque 54Nm
Battery pack parameters Battery brand Zhaoke
Battery capacity (ah) ten point four
Rated voltage (V) forty-eight
Rated energy (W) four hundred and ninety-nine point two
Charging input voltage (V) forty-eight
Rechargeable times of battery 1000 times. The service life shall be reduced by 500 times of charge and discharge, and the actual capacity shall not be less than 6ah (60% of the original capacity)
Charging time (H) 4-6h
Battery warranty period 1 year
Charger Parameters Rated input voltage (V) 100-240V
Rated output voltage (V) 54.6V
Output current (a) 3A
Working voltage (V) 48V
Brake Brake (electronic brake / oil disc / V brake...) Mechanical disc brake
Front brake (type) Small support
Rear brake (type) Large support
Outer diameter of disc brake disc 160mm
Tooth disc and chain parameters Number of teeth 24*34*42
Crank size 170mm
Central axis Integrated central shaft
chain KMC chain
Headlamp Lamp type LED
Working current (a) 60mA
Working voltage (V) forty-eight
Power (W) three
Number of lamp beads 4 300 lumens
Bicycle handle Handle material Aluminum alloy material
Can I fold it may not
Right handle function Rear brake
Left handle function Front brake
tyre Tire size 26*1.95
Tire material rubber
Optimum tire pressure kPa 280-450
Brand CST
cushion texture of material Leather, raw material PVC + sponge
Minimum (height from the ground) 84CM
Maximum (height from the ground) 98CM

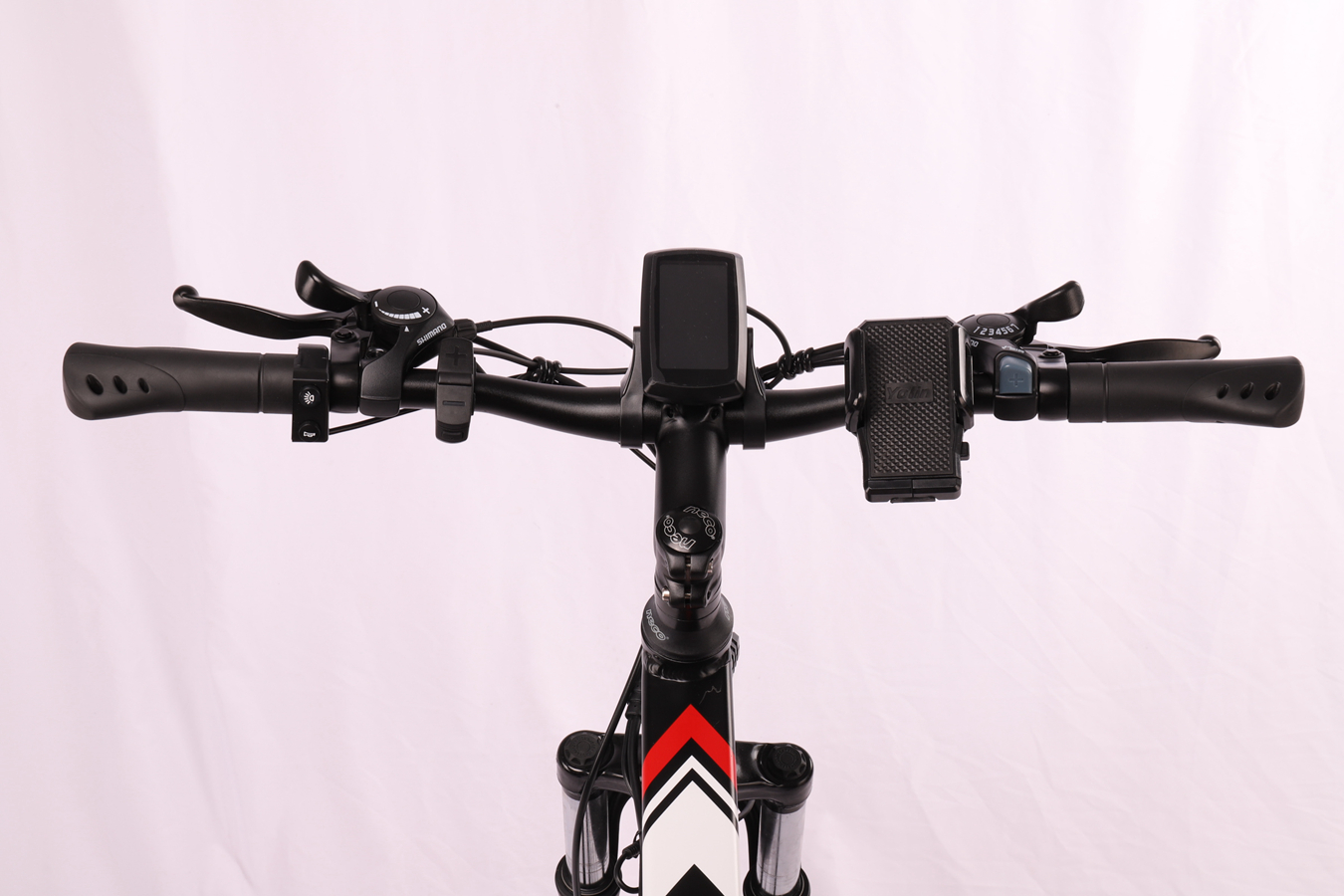

Instrument and function display Instrument type (LCD / LED / OLED) LCD central instrument
Instrument display parameters Power display, kilometer display, gear display and total mileage display
Packing list instructions one
Reflector one
Turn handle one

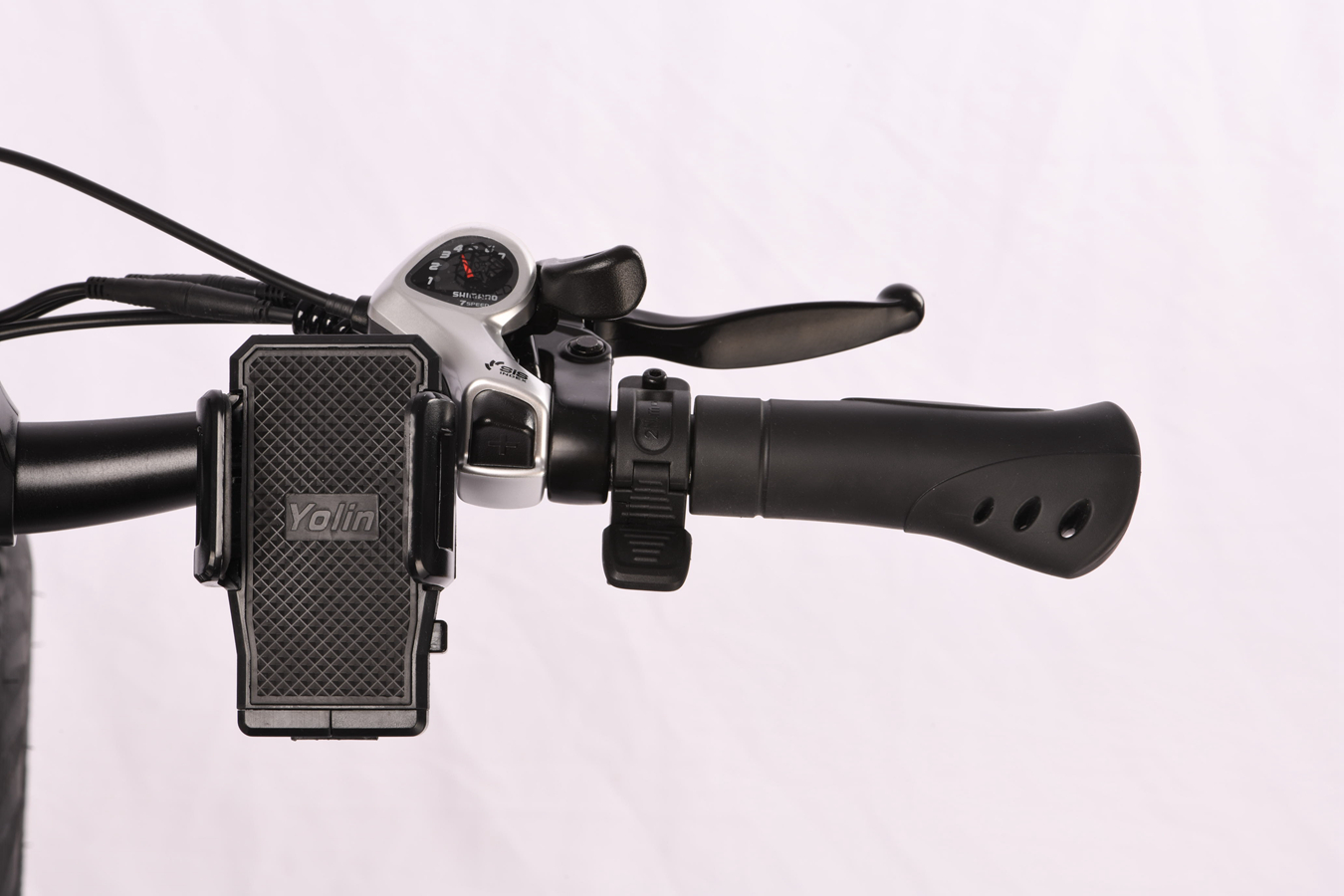

Mobile phone bracket one
Charger one
Kit details 3, 4, 5, 6mm hexagon socket screwdriver 8 / 10, 13 / 15, 16 / 18 open-end wrench
Product certification CE
Product selling points Front and rear shock absorption system, motor 48v500w, LCD central instrument, hidden battery, vehicle waterproof line, Shimano transmission, Shimano 7-Stage flywheel, front lamp 300lm, CST tire, front 3-speed and rear 7-speed
