performance index
Body material & size Car body color black
Body material aluminium alloy
Packing box size (mm) 970*190*355
Vehicle size (mm) 1060*440*1125
Folding size (mm) nine hundred and fifty × one hundred and eighty × three hundred and forty
Chassis height (mm) fifty
Applicable height (CM) two hundred
Net weight (kg) eleven point eight five
Gross weight (kg) fourteen point five zero
Limit load of vehicle body (kg) one hundred and twenty
Vehicle parameters Brake Type Electronic brake + rear foot mechanical brake (rear fender)
Speed gear 1st gear 15 2nd gear 20 3rd gear idling 30 yards
Maximum speed (km / h) 25KM/H
Mileage (km) About 25-30km / h
Applicable terrain Flat pavement
Service temperature - 10 ° to 40 °
Waterproof grade IP64
controller Voltage (V) 36V
Overcurrent protection value (a) 16A
Undervoltage protection value (V) 29A
Motor (wheel) parameters Rated power (W) three hundred and fifty
Rated voltage (V) thirty-six
Rated current (a) eight point five
No load current (a) ≤0.9
No load speed (1min) six hundred
Front wheel motor dimensions 8-inch solid honeycomb tire
Rear wheel size (including tire) 8-inch solid honeycomb tire
Battery pack parameters Cell brand Huiyi
Battery capacity (ah) 7.5AH
Rated voltage (V) 36V
Charging input voltage (V) 42V
Intelligent BMS Zhongju
Rechargeable times of battery ≥600
Charger Parameters Rated power (W) 63W
Rated input voltage (V) 100V-240V
Rated current (a) 1.4A-1.6A
Charging time (H) 7H
Rated output voltage (V) 41.8V-42.8V
Headlamp Working voltage (V) 36V
Working current (a) 0.04A
Taillight Working voltage (V) 36v
Working current (a) 0.02A

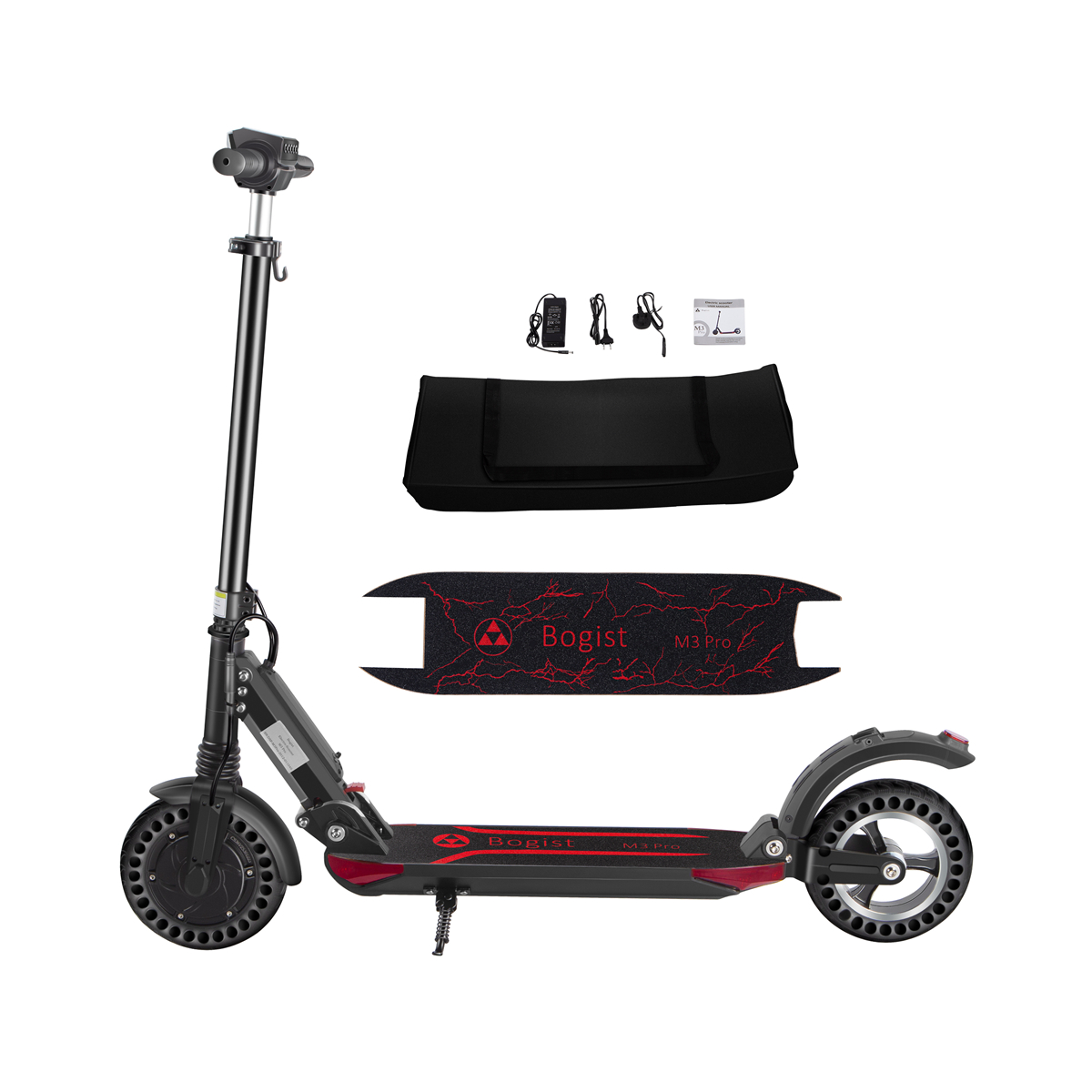

Packing details Scooter * 1, power adapter * 1, British plug * 1, European plug * 1, manual * 1, pedal sandpaper * 1, scooter BAG * 1 (without tool kit, scooter comes with horn)
