parameter
Maximum speed (km / h) forty-five
Speed gear There are three gears in total: first gear 15 yards, second gear 25 yards, third gear 45 yards
Mileage (km) "EU version: 40-50km
US Version: 30-40km“
Applicable terrain Urban Rd
Service temperature Minus 20 to 100 degrees
Maximum climbing gradient thirty-five
Constant speed cruise function have
Brake Type Disc brake
Braking function and position Power off front and rear brakes
Brake position and function Disc brake
Waterproof grade IP54
Body material Iron + aluminum
Car body color black
Packing box size (length, width and height cm) 120*27*47
Vehicle size (length, width and height cm) 117.8*63*135
Folding size (length, width and height cm) 115*24.5*57
Net weight (kg) twenty-five
Gross weight (kg) thirty point seven
Maximum bearing capacity of vehicle body (kg) 20-120
Pedal distance from the ground (CM) two hundred and twenty-five
Applicable height (CM) one hundred and eighty
vibration reduction Spring damping
Product certification CE have
FCC have
ROHS have
Other certification have
Motor (wheel) parameters Motor brand Jianyuansheng
Motor model 10 inch split
Rated voltage (V) 48V
Rated power (W) 1000W
Rated current (a) 10A
No load current (a) 1.2A
No load speed (1min) 1050 rpm
Number of motors: one
Motor position after
Motor size (mm) 168mm
Front wheel size (mm) 255mm
Rear wheel size (mm) 255mm
Battery pack parameters Battery brand Hengli
Battery model HA124-02

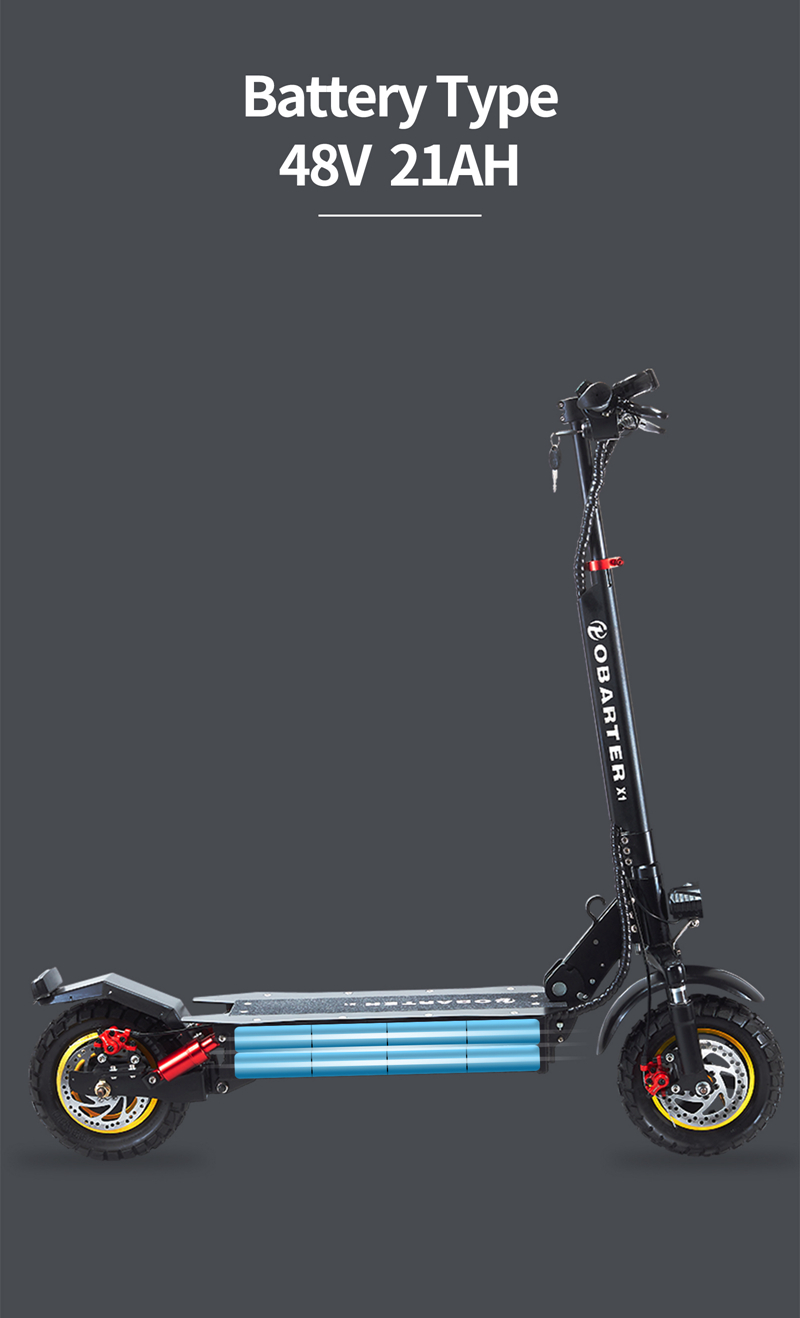

Battery capacity (ah) "EU version: 21ah
US Version: 13Ah“
Rated voltage (V) forty-eight
Rated power (W) six hundred and twenty-four
Charging input voltage (V) fifty-four point six
Intelligent BMS have
Rechargeable times of battery three hundred
Charging time (H) eight
Battery warranty period 1 year
Charger Parameters Charger brand Fuyuan power
Charger model 54.6V1. 5A
Rated input voltage (V) 100-240V
Rated output voltage (V) 54.6V (plus or minus 1.0V)
Rated current (a) 1.5A (plus or minus 0.15A)
Working voltage (V) 38-54.6V
Scooter handle Handle material Aluminum
Can I fold it yes
Right handle function Rear brake + electric door lock + headlamp switch

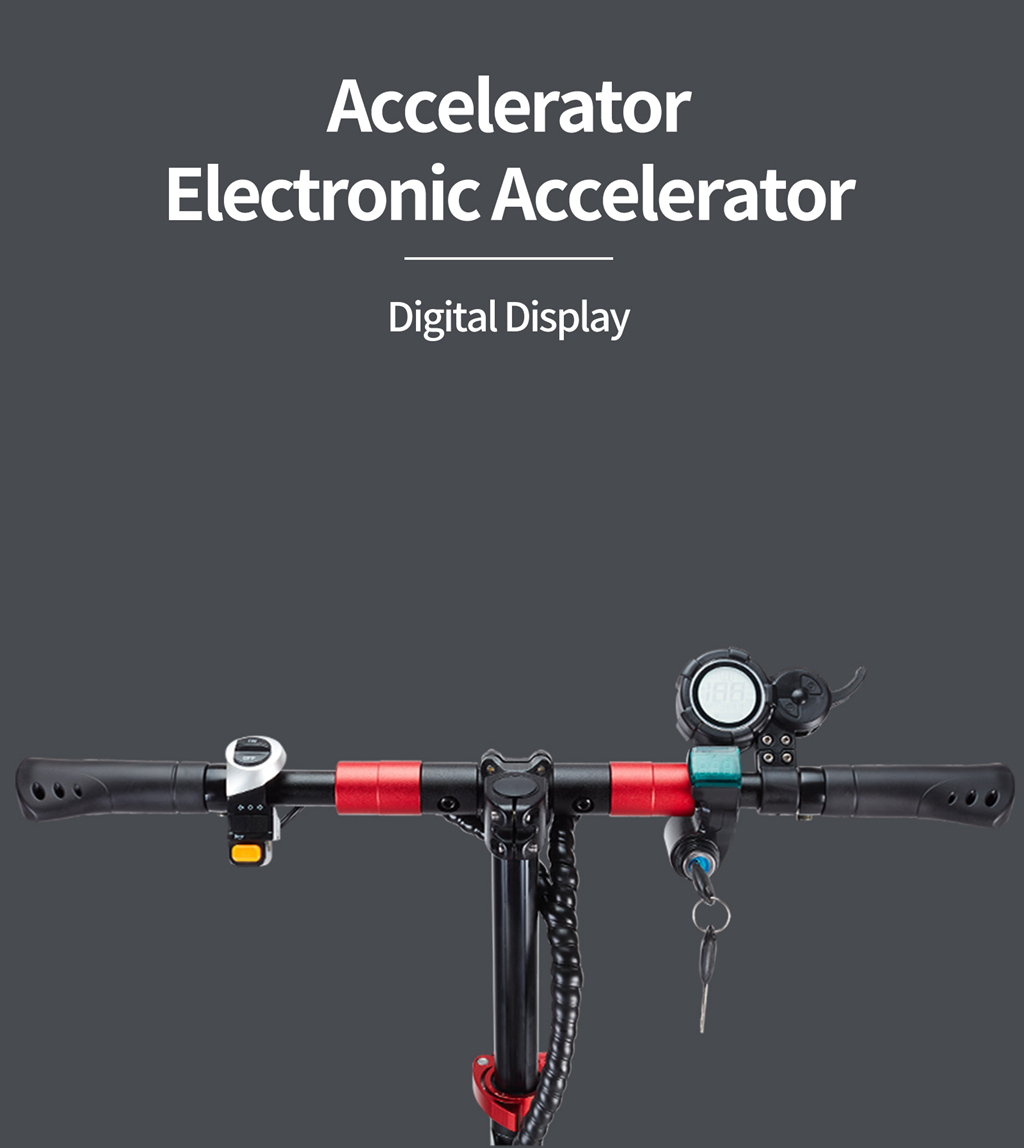

Left handle function Front brake + instrument accelerator
Headlamp Headlamp type Four LED headlights
Working current (a) 12-48v
Working voltage (V) 12-48v
Taillight Tail lamp type Brake + normally on + left and right steering
Working current (a) 12-48v
Working voltage (V) 12-48v
Instrument and function display Instrument size ninety-five
Instrument type (LCD / LED / OLED) lcd
Instrument display parameters have
APP nothing
Bluetooth nothing
USB output interface nothing
Other functions nothing
cushion texture of material Leather and sponge
Minimum (height from the ground) 67mm
Maximum (height from the ground) 78mm
Packing list instructions have
Charger have
tool kit have
Product selling points "1. Front and rear dustproof and shock absorber (full spring without leakage)

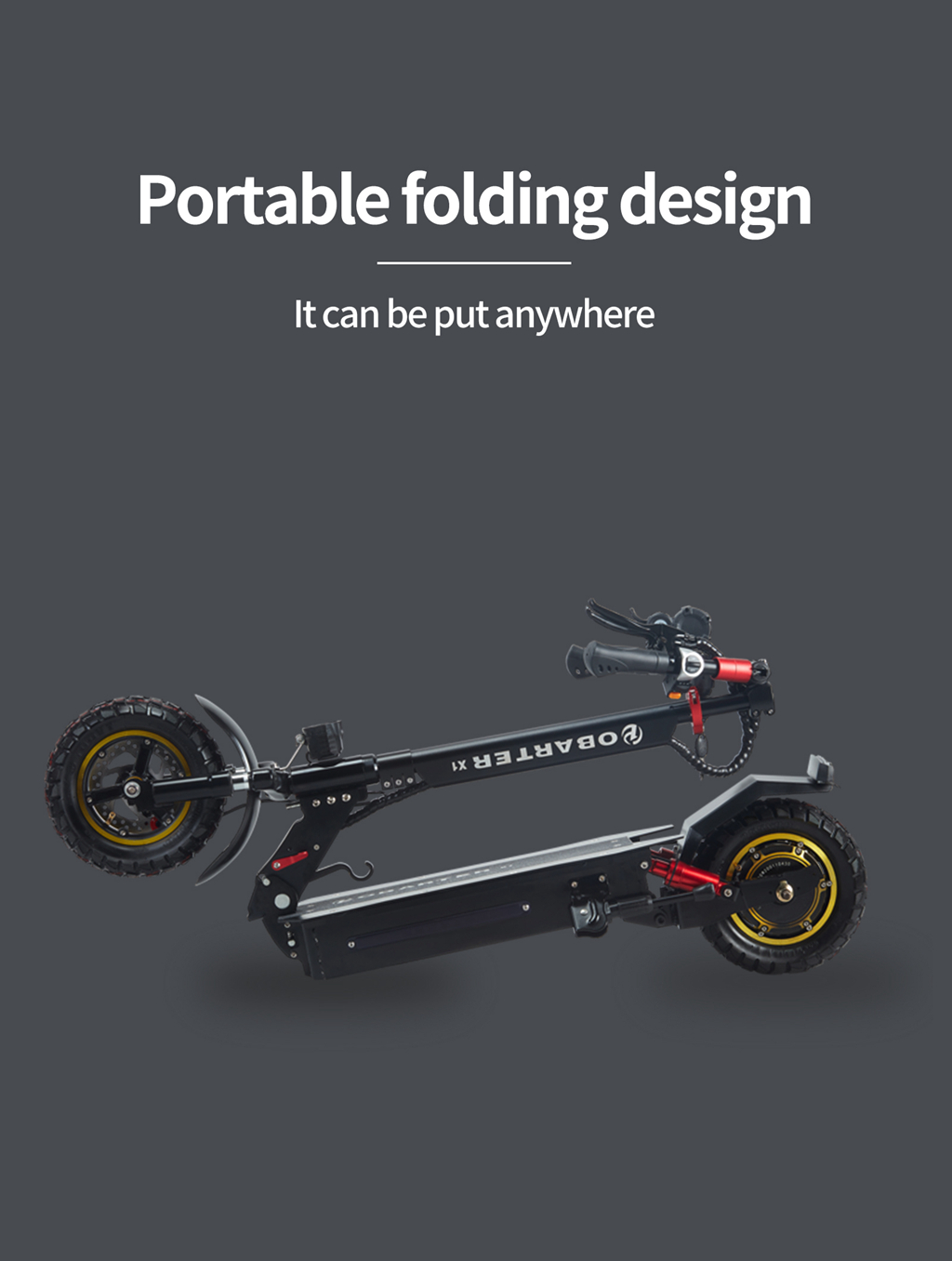

2. Foldable and retractable models
3. Z0m mechanical brake (strong braking stability)
4.48v9 tube controller, speed 50 yards per hour
5. Off road tire (it will not slip on gravel ground and has high wear resistance)
6. With left and right turn signals
7. High display LCD instrument panel (can debug various functions, such as high-speed cruise, electronic brake strength, soft and hard start, non-zero start, etc.)
8. Powerful battery life (60-65 km)
9. The car body is equipped with colorful lights (to give better light prompt at night and improve the personal safety of driving cars)“
